Brand Uniview
Model NVR302-32S
Type 32 Channel 2 SATA NVR
SATA 2 SATA interfaces
Capacity Up to 8TB for each disk
(The maximum HDD capacity varies with environment temperature)
IP Video Input 32-ch
Two-way Audio Input 1-ch, RCA
VGA Output 1920x1080p@60, 1920x1080p@50, 1280×1024@60, 1280×720@60, 1024×768@60
HDMI Output 4K (3840×2160) @30, 1920x1080p@60, 1920x1080p@50, 1600×1200@60, 1280×1024@60, 1280×720@60, 1024×768@60
Recording Resolution 8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Live view display 1/4/6/8/9/16/25/36
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution
Capability 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1
Decoding format Ultra 265/H.265/H.264
Liveview/Playback 8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 64Mbps
Web Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Remote Users 128
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
VCA Detection Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD)
VCA Search Behavior Search
People Counting People Flow Counting, Crowd Density Monitoring
Extras Smart Intrusion Prevention (SIP), UMD by Camera
Total 8-ch
Network Interface 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0
RS232 N/A
RS485 N/A
Alarm In N/A
Alarm Out N/A
Power 12V DC
Power Consumption: ≤ 15W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions 380mm × 315mm ×53mm (15.0″ × 12.4″ ×2.1″ )
Weight ≤ 2.48 Kg (5.47 lb)
Certification Certification: CE, FCC, UL, RoHS, WEEE
CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC: Part15 Subpart B, ANSI C63.4
Warranty Details 1-Year Brand Warranty
Description:

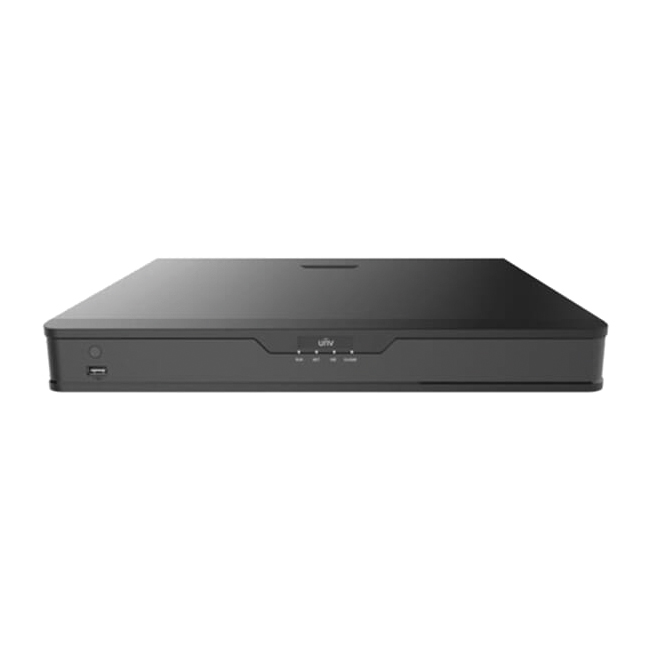

Uniview NVR302-32S 32 Channel 2 SATA NVR
Uniview NVR302-32S stands as a reliable 32-channel NVR system, offering effective video surveillance with simplicity in mind. Featuring two SATA interfaces, each supporting up to 8TB for substantial storage, it ensures extensive recording capacity to meet diverse security needs. With an impressive 32-channel IP video input capability, this NVR provides comprehensive coverage for large-scale surveillance applications. Display options include VGA and HDMI outputs, delivering resolutions like 1920x1080p@60 and 4K (3840×2160)@30, ensuring clear and detailed visuals for monitoring. The recording resolution spans from 8MP to CIF, accommodating a wide range of recording requirements. It boasts a substantial incoming bandwidth of 160Mbps and an outgoing bandwidth of 64Mbps, ensuring smooth and reliable data transmission.
Equipped with general alarms including motion detection, tampering, human body detection, video loss, alarm input, and audio detection, the NVR enhances security monitoring capabilities. The alert alarm system notifies users about events such as IP conflict, network disconnection, disk offline, disk abnormality, illegal access, low hard disk space, full hard disk, and abnormal recording/snapshot. Featuring two RJ-45 10M/100M/1000M self-adaptive Ethernet interfaces and USB interfaces for convenient connectivity, the NVR302-32S is user-friendly and efficient. Backed by a 1-year brand warranty, it provides a dependable solution for comprehensive video surveillance.
