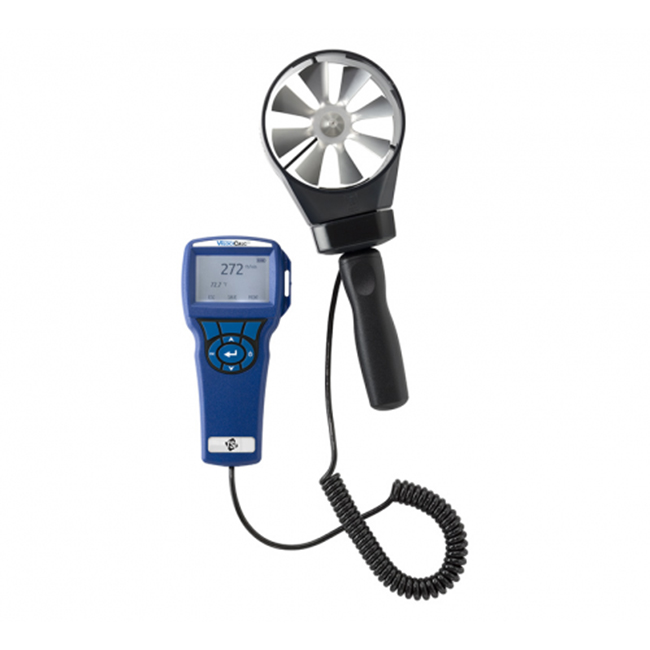

The 5725 VelociCalc accurately measures air velocity and temperature, calculates flow rate, performs averaging, and can determine minimum and maximum readings. Using sweep mode you can quickly provide one averaged reading of velocity or volume over a large measurement area. The large vane head automatically averages velocity and volume readings.
Specifications
Air velocity:
– Range: 0.25 to 30 m/s (50 to 6,000 ft/min)
– Accuracy: +/- 1.0% of reading
Duct size:
– Range: 0 to 46.45 m2 (0 to 500 ft2)
Volumetric Flow Rate:
– Range: Actual range is a function of velocity and duct area
Temperature:
– Range: 5 to 45 C (40 to 113 F)
– Accuracy: 1 C (2 F)
– Resolution: 0.1 C (0.1 F)
Data logging:
– Storage: 12,700+ samples and 100 test IDs
– Interval: 1 second to 1 hour
– Time constant: User selectable
Other specifications:
– Power: Four AA-size batteries or optional AC adapter
– Dimensions: 8.4 cm x 17.8 cm x 4.4 cm (3.3 in. x 7.0 in. x 1.8 in)
