Sensors Current Speed
Type:High Impact Styrene Impeller
Size:125mm diameter by 270mm pitch
Range:0.03 to 5m/s
Accuracy: ±0.004m/s (below 0.15m/s)
±1.5% of reading (above 0.15m/s)
Direction
Type:Flux gate compass
Range:0 to 360°
Accuracy:± 2.5°
Resolution:0.5°
Temperature
Type:Thermistor
Range:-5 to 35°C
Accuracy:Accuracy: ± 0.2°C
Resolution:0.01°C
Pressure
Type:Strain Gauge Transducer
Range:50, 100, 200 or 500 dBar
Accuracy:± 0.2% Range
Resolution:0.025% Range
Data Acquisition
The current meter works on a basic 1 second cycle, during which the impeller counts are taken and a single compass heading reading is made. From this, East and North velocity vectors are calculated, which are then summed over the averaging period. The additional parameters of temperature and pressure (if fitted) are sampled once every sample period, and averaged over the averaging period.
Data Recovery
Direct to PC via communications port. Maximum RS232 data rate of 19200
baud.
Switching On/Off
The meters are switched on and off through software control, either by the DataLog x2 software or by using the Model 8008 CDU. However, for autonomous, self-recording operation the 106 is supplied with a SubConn switch cap that fits in place of a direct cable connection.

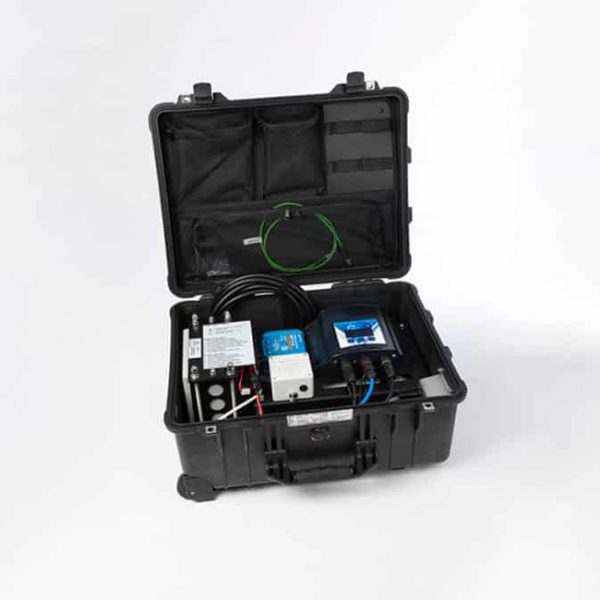

Display Unit
The Model 106 may be used with a dedicated display unit for real time operations allowing instrument setup and data display.
Size:244 x 193 x 94mm, 2kg
Protection:
IP67 (10 secs@0.3m)
Memory
512 Kbyte Solid State Memory. Each parameter record uses 2 bytes. As an example, this gives a duration of over 1 week with full parameter sampling every 10 seconds, or 220 days with sampling every 5 minutes.
Power
Internal:
1 x D cell. 1.5v alkaline cell gives approximately 30 days at 10 second sample rate, or 56 days at 5 minute sample rate. 3.6v Lithium cell gives approximately 90 days at 10 second sample rate, or 180 days at 5 minute sample rate.
External:
For external supply, 12-20v DC is required. Power can also be taken from the Model 8008 CDU.
Communications
Fitted with SubConn MCBH10F (Brass) RS232 to PC over cable lengths up to 200m. Digital Current Loop to Model 8008 CDU, or to PC over longer cable lengths (requires additional adapter).
Physical Instrument
Materials:Titanium, acetal and ABS plastic
Size:640mm x 50mm Ø
tail 133mm wide x 270mm high
Weight:3kg (air), 2kg (water)
Depth Rating:500m
Shipping
Model 106 Size:84 x 42 x 39cm
Model 106 Weight: 17kg
50m Cable Size: 42 x 33 x 49cm
Cable Weight: 11kg
Software
System is supplied with DataLog X2 Windows based PC software, for instrument setup, data extraction and display of tabular and graphical data plots. DataLog X2 is licence free.
Ordering
0106001SC
Model 106 Self Recording/Direct Reading Fitted with:
· Speed and Direction sensors
Supplied with:
– Communications lead (3m Y lead)
– Switch Cap
– Software
– Operating manual, Tool kit and transit case.
0106003SC
As 0106001SC plus Temperature option
0106004SCXX
As 0106001SC plus Depth option
0106005SCXX
As 0106001SC plus Temperature & Depth
Note:
(XX denotes pressure transducer range)
0105005SC
Control Display Unit set, comprising deck lead and
Model 8008 CDU.
