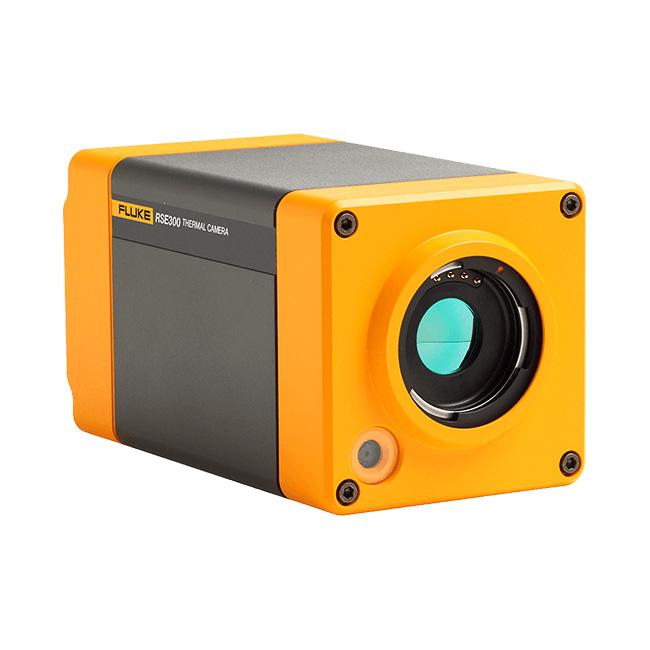

Model: Fluke RSE300 Mounted Infrared Camera
Fluke RSE300 Mounted Infrared Camera is reliable and MATLAB® and LabVIEW® software compatibility allows users to integrate infrared data, images, and videos to support R&D analysis.
Introducing the first ever adequately-radiometric, mounted Fluke infrared cameras the RSE series. Equipped taking into account ahead of its time features and software plug-ins to MATLAB and LabVIEW, these tools are ideal for eternity streaming and analyzing infrared data.
Designed for your research, science and engineering needs, adjoin your psychotherapy and mood assurance events by mounting the RSE300 to your workstation. Continuously stream occurring to 60 frames of data per second directly to your computer to monitor minute temperature differences, and analyze videos frame-by-frame remotely from SmartView desktop software. Enhance your viewing experience as soon as optional mount occurring-around lenses to direct oscillate applications (analyzing from a set against, or getting the muggy-occurring details).
Specifications: Fluke RSE300 Mounted Infrared Camera
| Key Features | |
| IFOV with standard lens (spatial resolution) | 1.85 mRad |
| Detector resolution | 320 x 240 (76,800 pixels) |
| Field of view | 24 °H x 18 °V |
| Minimum focus distance | 15 cm (approx. 6 in) |
| Camera focus options | Focus is adjusted in SmartView® desktop software |
| Wireless connectivity | Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) |
| IR-Fusion® technology | Yes, in SmartView® desktop software. Five modes of image blending (AutoBlend™ mode, Picture-in-Picture (PIP), IR/Visible alarm, Full IR, Full visible light) add the context of the visible details to your infrared image |
| Thermal sensitivity (NETD) | ≤ 0.040 °C at 30 °C target temp (40 mK)* |
| Filter mode (NETD improvement) | Yes |
| Level and span | Smooth auto and manual scaling, in SmartView® desktop software |
| Fast auto toggle between manual and auto modes | Yes, in SmartView® desktop software |
| Fast auto-rescale in manual mode | Yes, in SmartView® desktop software |
| Minimum span (in manual mode) | 0.1 °C (0.18 °F), in SmartView® desktop software |
| Minimum span (in auto mode) | <1.0 °C (<1.8 °F), in SmartView® desktop software |
| Built-in digital camera (visible light) | 5 megapixel industrial performance |
| Frame rate | 60 Hz or 9 Hz versions |
| Digital zoom | Variable up to 16x in SmartView® desktop software |
| *Best possible | |
| Data storage and image capture | |
| Memory options | Connect to SmartView® desktop software for storage to device or upload to Fluke Cloud™ for permanent storage Capture, save and analyze images in SmartView® desktop software |
| Image capture, review, save mechanism Image file formats | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files |
| Software | SmartView® desktop software—full analysis and reporting software Compatible with MATLAB® and LabVIEW® software |
| Export file formats with SmartView® desktop software | Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
| Voice annotation | Yes, in SmartView® desktop software |
| Text annotation | Yes, in SmartView® desktop software |
| Video recording | Yes, in SmartView® desktop software |
| File formats video | Non-radiometric (MPEG-encoded .AVI) and fully-radiometric (.IS3), in SmartView® software |
| Remote display viewing | Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to SmartView® desktop software on a PC; via WiFi hotspot to the Fluke Connect® app |
| Remote control operation | Yes, through ethernet or SmartView® desktop software |
| Temperature measurement | |
| Temperature measurement range (not calibrated below -10 °C) | -10 °C to +1200 °C (14 °F to +2192 °F) |
| Accuracy | ± 2 °C or ± 2 %, whichever is greater |
| Reflected background temperature compensation | Yes, in SmartView® desktop software |
| Transmission correction | Yes, in SmartView® desktop software |
| Live line marker | Yes, in SmartView® desktop software |
| Color Palettes | |
| Standard palettes | 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ palettes | 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra |
| General specifications | |
| Color alarms (temperature alarms) | Yes, in SmartView® desktop software–high temperature, low temperature, and isotherms (within range) |
| Infrared spectral band | 8 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity | 10 % to 95 % non-condensing |
| Center-Point temperature measurement | Yes, in SmartView® desktop software |
| Spot temperature | Yes, in SmartView® desktop software–hot and cold spot markers |
| User-definable spot markers | 3 user-definable spot markers, in desktop software |
| Center box | Expandable-contractible measurement box with MIN-MAX-AVG temp display, in desktop software |
| Electromagnetic compatibility | EN 61326-1:2013 IEC 61326-1:2013; (Industrial) |
| US FCC | CFR 47, Part 15 Subpart B Class A |
| Vibration | IEC 60068-2-26 (sinusoidal vibration): 3G, 11–200 Hz, 3 axis |
| Shock | IEC 60068-2-27 (mechanical shock): 50G, 6 ms, 3 axis |
| Size (H x W x L) | 8.3 x 8.3 x 16.5 cm (3.3 x 3.3 x 6.5 in) |
| Weight (battery not included) | 1 kg (2.2 lb) |
| Enclosure rating | IEC 60529: IP67 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two years (standard), extended warranties are available |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
