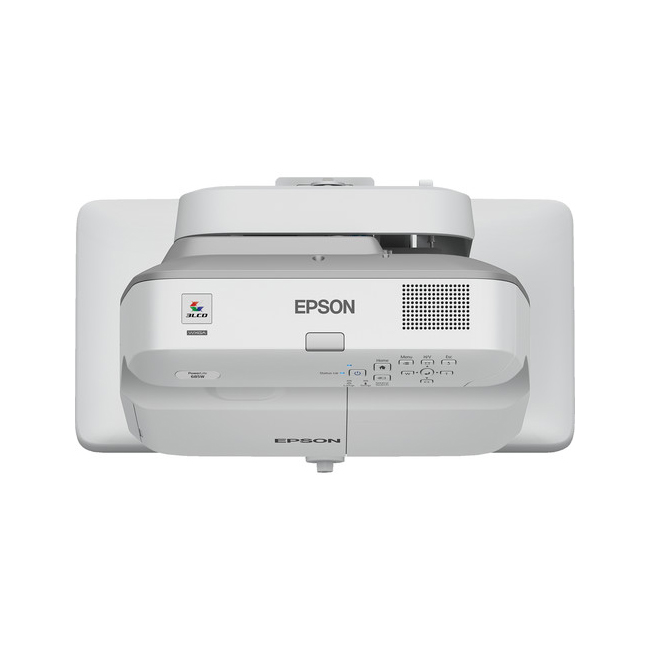

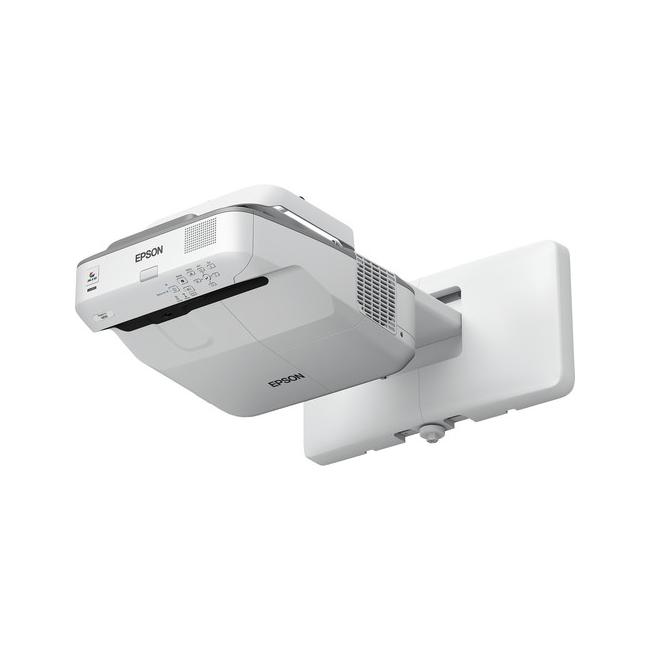

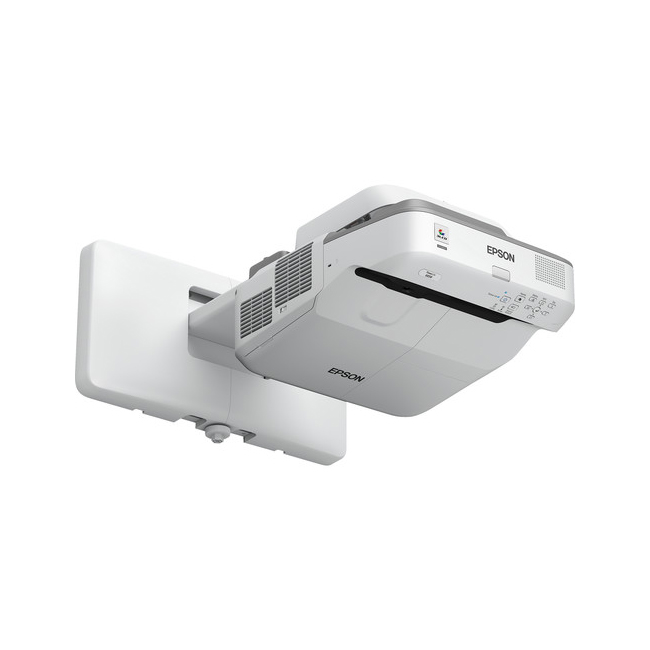

Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short Throw 3LCD Projector
Enjoy virtually shadowless images with the Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short Throw 3LCD Projector. It features an ultra-short 0.28 to 0.37:1 throw ratio, which will allow it to be mounted only 11″ from your screen or whiteboard and project an image as large as 100″, reducing the risk of possible shadows. Its 3500 lumens of brightness, combined with its 14,000:1 contrast ratio, will help it overcome ambient light in many situations and help retain detail in dark areas of the image without compromising overall brightness. The 1280 x 800 native resolution will help ensure that text is clear at most viewing distances.
The PowerLite 685W features USB, RCA composite, and three HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. The USB input allows you to project directly from a Windows or Mac computer. You can output the video to another projector or display with the VGA output. Its 3.5mm audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control.
High Color and White Brightness Levels
Both color and white brightness of 3500 lumens.
Ultra-Short Throw Projector
Can be mounted only 11″ from the board or screen for a projected image as large as 100″ diagonal, with virtually no shadow interference.
Split Screen
Simultaneously project two images (video or still) side-by-side from two different sources.
Built-In Speaker
The PowerLite 685W features a microphone input and built-in 16W speaker to amplify the audio of the presentation. You can also pass the signal through to external speakers, even in standby mode.
USB Plug & Play
Instantly project images from a Windows or Mac computer using a USB connection.
3LCD Color Accuracy
3LCD, 3-chip technology is designed to provide enhanced color brightness and a wider color gamut.
Simultaneously Display and Control Multiple Device Screens
Wirelessly share content from up to four devices including Chromebooks, iOS, Android, Mac, and Windows devices, with Moderator software.
Manage Your Display and Sent Announcements Remotely
Designed for easy network connectivity with included software.
Versatile Connectivity
Image Display
Display System 3-Chip Polysilicon TFT LCD
Native Chip Resolution 1280 x 800 (WXGA)
Supported Resolutions Maximum: UXGA – 1600 x 1200
Max Brightness 3500 Lumens
Aspect Ratio 16:10
Contrast Ratio 14000:1
Color Depth 10-Bit (1.07 Billion Colors)
Lens
Focus Manual
Lens f/1.6 (f = 3.7 mm)
Throw Distance 13.386 – 23.622″ / 34 – 60 cm
Throw Ratio 0.28 to 0.37:1
Projection Size 60 – 100″ / 152.40 – 254.00 cm
Features
Keystone Correction Manual-Vertical: ± 3°
Manual-Horizontal: ± 3°
Digital Zoom 1.35x
Ceiling Mountable None
Rear Screen Projection Yes
Built-In Speaker Yes (Mono)
Speaker Power 16W

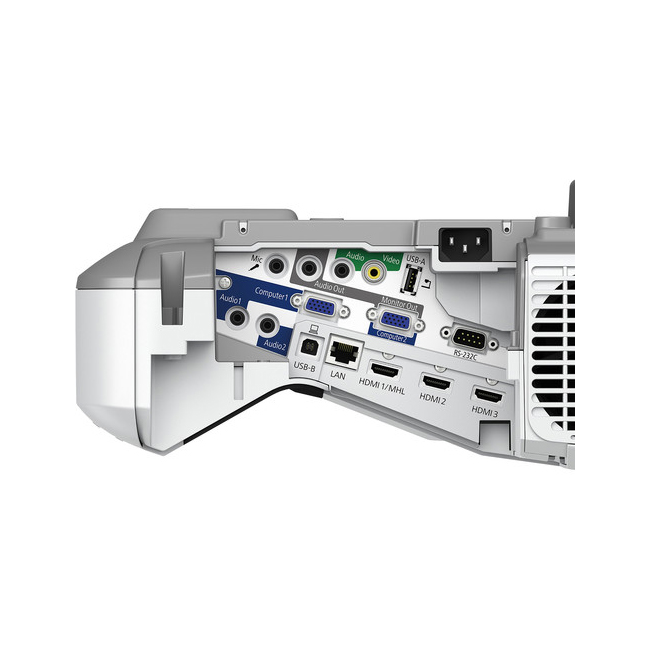

Input/Output Connectors
Inputs/Outputs 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input
1 x USB 2.0 (USB Type-B) Data Input
1 x Composite (RCA) Video Input
3 x 1/8″ / 3.5 mm Mini Microphone Input
1 x 1/8″ / 3.5 mm Mini Control Input
1 x RS-232 (DE-9/DB-9) Control Input
1 x VGA (DE-15/DB-15) Video Output
1 x 1/8″ / 3.5 mm Mini Audio Output
1 x USB 2.0 (USB Type-A) Power Output
1 x Ethernet (RJ45) LAN Input
Wireless LAN / Wi-Fi None
General
Light Source Lamp (1 x UHE)
Lamp Power 250 W
Expected Lamp Life Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours
Fan Noise Medium Brightness: 35 dB
Low Brightness: 29 dB
Security Cable Lock Slot
Padlock
Password Protection
AC Input Power 120 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness: 373 W
Low Brightness: 324 W
Standby Mode (Lamp Off): 2.2 W
Standby Mode (Lamp Off): 0.23 W
Dimensions (W x H x D) 14.5 x 7.4 x 15.8″ / 36.8 x 18.8 x 40.1 cm Including feet
14.5 x 5.9 x 15.8″ / 36.8 x 15.0 x 40.1 cm Excluding feet
Weight 12.6 lb / 5.7 kg
Packaging Info
Package Weight 19.5 lb
Box Dimensions (LxWxH) 21.4 x 19.3 x 10.2″
