Mavic Air 2 takes power and portability to the next level, offering advanced features in a compact form factor. Intelligent shooting functions and excellent image quality put aerial masterpieces within reach. Safer, smarter flight enables you to up your game while fully enjoying the creative process.
The secret to incredible HDR video is a high-performance Quad Bayer image sensor. A single frame separates exposure levels in different areas, accurately capturing light and dark details. The images are layered to create a colorful, balanced, and eye-catching picture with higher dynamic range.
Hyper Light optimizes photos taken in low-light conditions, resulting in less noise and enhanced clarity.
HDR Panorama
See the Whole Picture
Mavic Air 2 offers DJI’s most advanced panorama mode, with a higher dynamic range and colors that are vivid and incredibly accurate.
Focus Track
Master the Skies
Professional-quality footage is effortless thanks to FocusTrack. This easy-to-use suite of intelligent tracking modes includes Active Track 3.0, Spotlight 2.0, and Point of Interest 3.0, allowing you to unleash your creativity.
Aircraft
Weight 570 g
Size Folded:
180×97×84 mm (Length×Width×Height)
Unfolded:
183×253×77 mm (Length×Width×Height)
Diagonal Distance 302 mm
Max Ascent Speed 4 m/s (S Mode)
4 m/s (N Mode)
Max Descent Speed 3 m/s (S Mode)
3 m/s (N Mode)
5 m/s (S Mode and N Mode during a sharp descent)
3 m/s (all modes at elevations over 4500 m)
Max Service Ceiling Above Sea Level 5000 m
Max Flight Time (without wind) 34 minutes
Max Hover Time (without wind) 33 minutes
Max Flight Distance 18.5 km
Max Horizontal Flight Speed 19 m/s (S Mode)
12 m/s (N Mode)
5 m/s (T Mode)
Max Wind Resistance 8.5-10.5 m/s (Level 5)
Max Tilt Angle 35° (S Mode)
20° (N Mode)
35° (N Mode under strong wind)
Max Angular Velocity 250°/s (S Mode)
250°/s (N Mode)
Operating Temperature Range -10° to 40°C (14° to 104°F)
Operating Frequency 2.400-2.4835 GHz
5.725-5.850 GHz
Transmitter Power (EIRP) 2.400-2.4835 GHz:
FCC: ≤26 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm
5.725-5.850 GHz:
FCC: ≤26 dBm
CE: ≤14 dBm
SRRC: ≤26 dBm
Hovering Accuracy Range ertical:
±0.1 m (with vision positioning)
±0.5 m (with GPS positioning)
Horizontal: ±0.1 m (with vision positioning)
±1.5 m (with GPS positioning)
Propellers Quick release, low noise, folding
Satellite Systems GPS+GLONASS
Compass Single Compass
IMU Single IMU
Internal Storage 8 GB
Battery
Capacity 3500 mAh
Voltage 11.55 V
Charging Voltage Limit 13.2 V
Battery Type LiPo 3S
Energy 40.42 Wh
Weight 198 g
Charging Temperature 5° to 40°C (41° to 104°F)
Max Charging Power 38 W
Camera
Sensor 1/2″ CMOS
Effective Pixels: 12 MP and 48 MP
Lens FOV: 84°
Equivalent Focal Length: 24 mm
Aperture: f/2.8
Focus Range: 1 m to ∞
ISO Video:
100-6400
Photo (12 MP):
100-3200 (Auto)
100-6400 (Manual)
Photo (48 MP):
100-1600 (Auto)
100-3200 (Manual)
Max Photo Resolution 48 MP 8000×6000 pixel
Photo Modes Single: 12 MP and 48 MP
Burst: 12 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 12MP, 3/5 Frames at 0.7EV Bias
Timed: 12 MP 2/3/5/7/10/15/20/30/60 seconds
SmartPhoto: Scene Recognition, HyperLight, and HDR
HDR Panorama[1]:
Vertical (3×1): 3328×8000 pixels (Width×Height)
Wide-angle (3×3): 8000×6144 pixels (Width×Height)
180° Panorama (3×7): 8192×3500 pixels (Width×Height)
Sphere (3×8+1): 8192×4096 pixels (Width×Height)
Photo Formats
JPEG/DNG (RAW)
Video Resolution and Frame Rates
4K Ultra HD: 3840×2160 24/25/30/48/50/60 fps
2.7K: 2688×1512 24/25/30/48/50/60 fps
FHD: 1920×1080 24/25/30/48/50/60/120/240 fps
4K Ultra HD HDR: 3840×2160 24/25/30 fps
2.7K HDR: 2688×1512 24/25/30 fps
FHD HDR: 1920×1080 24/25/30 fps
Color Profiles
D-Cinelike, Normal
Video Formats
MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)
Max Bitrate
120 Mbps
Supported SD Cards
Supports a microSD with capacity of up to 256 GB
Supported File Systems
FAT32 and exFAT
Zoom
Available
Gimbal
Stabilization
3-axis (tilt, roll, pan)
Mechanical Range
Tilt: -135° to 45°
Roll: -45° to 45°
Pan: -100° to 100°
Controllable Range
Tilt: -90° to 0° (Default)
-90° to 24° (Extended)
Max Controllable Speed (tilt)
100°/s
Angular Vibration Range
±0.01°
Vision System
Forward
Precision Measurement Range: 0.35-22.0 m
Detection Range: 0.35 to 44 m
Effective Sensing Speed: 12 m/s
Field of View (FOV):
71° (horizontal), 56° (vertical)
Backward
Precision Measurement Range: 0.37-23.6 m
Detection Range: 0.37-47.2 m
Effective Sensing Speed: 12 m/s
Field of View (FOV):
57° (horizontal), 44° (vertical)
Available Downward Sensors
Dual Vision Sensors + Time of Flight Sensors (ToF)
Downward
ToF Measurement Range: 0.1-8 m
Hovering Range: 0.5-30 m
Vision Sensor Hovering Range: 0.5-60 m
Left/Right
None
Downward Auxillary Light
Single LED
Safety
Obstacle Avoidance System
Advanced Pilot Assistance Systems (APAS) 3.0
Video Transmission
Transmission System
OcuSync 2.0
2.4 GHz/5.8 GHz Auto-Switching
Max Transmission Distance
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
Live View Quality
720p@30fps/1080@p30fps
Latency (depending on environmental conditions and mobile device)
120-130 ms
Video Transmission Encoding format
H.265/H.264 (Auto-switches depending on encoding capabilities of device)
Max Transmission Bitrate
12 Mbps
Operating Frequency
2.400-2.4835 GHz
5.725-5.850 GHz

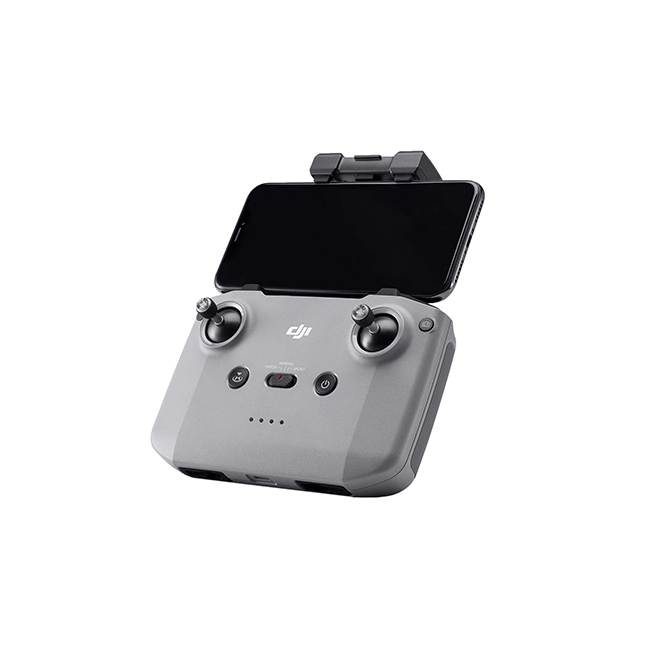

Remote Controller
Remote Controller Transmission System
When used with different aircraft hardware configurations, DJI RC-N1 Remote Controllers will automatically select the corresponding firmware version for updating and support the following transmission technologies enabled by the hardware performance of the linked aircraft models:
a. DJI Mini 2/ DJI Mavic Air 2: O2
b. DJI Air 2S: O3
c. DJI Mavic 3: O3+
Supported Mobile Device Connectors
Lightning, Micro USB, USB Type-C
Max. Supported Mobile Device Size
180×86×10 mm (Height×Width×Thickness)
Operating Temperature
-10° to 40°C (14° to 104°F)
Transmitter Power (EIRP)
2.400-2.4835 GHz:
FCC: ≤26 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm
5.725-5.850 GHz:
FCC: ≤26 dBm
CE: ≤14 dBm
SRRC: ≤26 dBm
Operating Current/Voltage
1200 mA@3.6V (Android)
700 mA@ 3.6 V (iOS)
Charger
Charging Input
100-240 V, 50/60 Hz, 1.3 A
Charging Output
Charging Port: 13.2 V⎓2.82 A
USB Port: 5 V⎓2 A
Voltage
13.2 V
Rated Power
38 W
SD Cards
Supported SD Cards
Micro SD™
Supports a microSD card with a capacity of up to 256 GB.
A UHS-I Speed Grade 3 rating microSD card is required.
Recommended microSD Cards
SanDisk Extreme PRO 64GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk Extreme 64GB V30 A2 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
Lexar Lexar 667x 64GB V30 A2 microSDXC
Lexar High-Endurance 64GB V30 microSDXC
Samsung EVO 64GB microSDXC
Samsung EVO Plus 64GB microSDXC
Samsung EVO Plus 256GB microSDXC
Kingston 128GB V30 microSDXC
Netac 256GB A1 microSDXC
