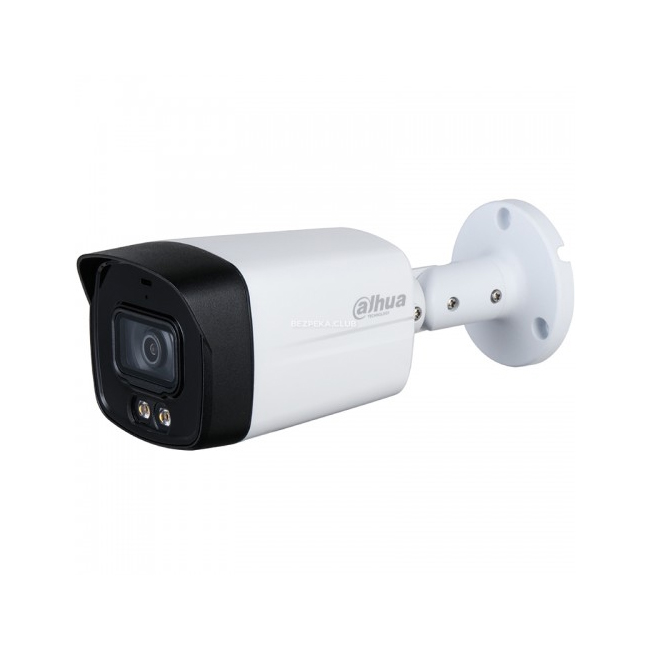

Dahua HAC-HFW1239TLMP-A-LED 2MP HDCVI Full Color IR Bullet Camera with Audio

General
Casing Metal front cover + plastic main body + metal bracket
Dimensions 198.4mm×80.2mm×76.2mm (7.81″×3.16″×3.00″)
Weight 0.3Kg
Pan/Tilt/Rotation Pan: 0°–360°
Tilt: 0°–180°
Rotation: 0°–360°
Operating Conditions -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) Storage Conditions -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) Power Supply 12V ±30% DC Power Consumption Max 5W (12V DC, white light on) Camera Image Sensor 1/2.8 inch 2.16 Mega Pixels CMOS Effective Pixels 1920 (H)×1080 (V), 2MP Electronic Shutter Speed PAL:1/25s–1/100000s NTSC:1/30s–1/100000s Minimum Illumination 0.005Lux/F1.6, 30IRE, 0Lux white Light on IR Distance Distance up to 40m (131.23ft) IR On/Off Control Auto; Manual IR LEDs 2 Lens Lens Type Fixed-focal Fixed iris Mount Type M12 Focal Length 2.8m/3.6mm Max Aperture F1.6 Angle of View 2.8mm: 126.2°×106.0°×56.5° (diagonalxhorizontalxvertical) 3.6mm: 103.6°x86.9°x46.3° (diagonalxhorizontalxvertical) Close Focus Distance 2.8mm: 0.6m (1.97ft) 3.6mm: 1.2m (3.94ft) Video Resolution 1080P (1920×1080); 720P (1280×720); 960H (704× 576/704×480) Frame Rate CVI: PAL: 1080@25fps, 720@25fps, 720@50fps; NTSC: 1080@30fps, 720@30fps, 720@60fps AHD: PAL: 1080@25fps,720@25fps; NTSC: 1080@30fps,720@30fps TVI: PAL: 1080@25fps,720@25fps,720@50fps; NTSC: 1080@30fps,720@30fps,720@60fps CVBS: PAL: 960×576H; NTSC: 960×480H Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port BLC Mode BLC/HLC/WDR Gain Control Auto; Manual Noise Reduction 2D NR Interface Audio Interface Built-in mic(-A) Warranty Warranty 1 Year Description Dahua HAC-HFW1239TLMP-A-LED 2MP HDCVI Full Color IR Bullet Camera with Audio Experience 1080P full HD color video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The full-color starlight HDCVI camera presents a high quality color image with rich details even in total darkness conditions. It offers various fixed lens models with a multi-language OSD and HD/SD switchable output. It adopts two powerful warm white LED illuminators, covering an effective range up to 40m(131.23ft). The LEDs switch on automatically in darkness to capture detail-packed full-color images 24/7, ensuring authentic identification of objects. It is an ideal choice for applications such as schools, retail centers and parking lots. The camera adopts F1.6 large aperture lens and 1/2.8" high performance sensor. With higher amount of absorbed light and advanced image processing algorithm, the camera presents an impressive lowlight performance with an exceptional balance between noise reduction and the blur of moving object. With two warm supplemental LED lights, the camera is able to provide a coloful and vivid image even in total darkness. It also provides visible By default, the camera is set to smart light mode, in which the camera can automatically adjust the exposure time and light sensitivity simultaneously to avoid over exposure of the objects in the image center. Also, the sensitivity and intensity of the LED lights can be remotely controlled by OSD menu. Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information. HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. HDCVI technology guarantees long-distance and real-time transmission without any loss. It supports up to 800m for 1080P Full HD video via coaxial cable, and up to 300m via UTP cable. HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network. The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four format scan be switched over through OSD menu or by PFM820(UTC controller).This feature makes the camera to be compatible with most end users’ existing HD/SD DVRs. The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments.
