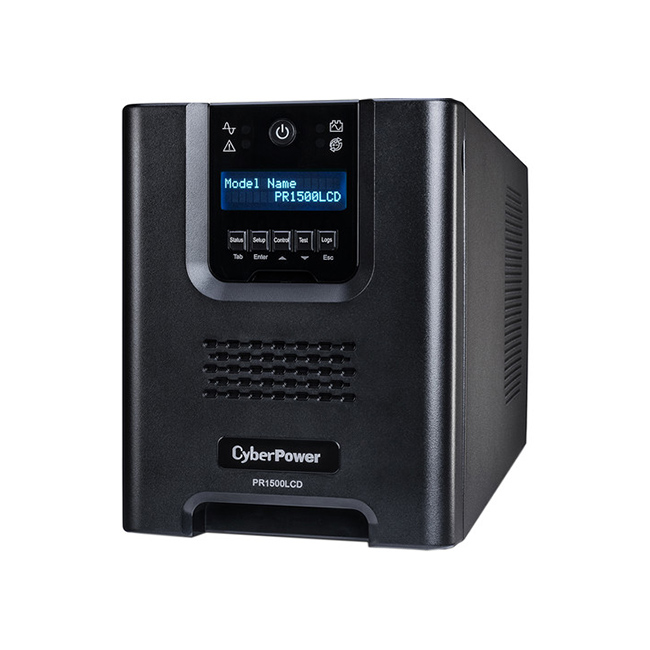

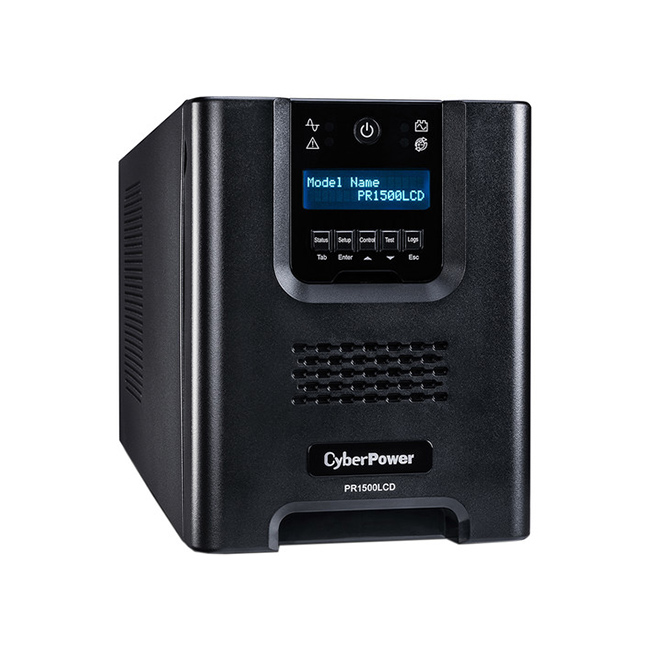

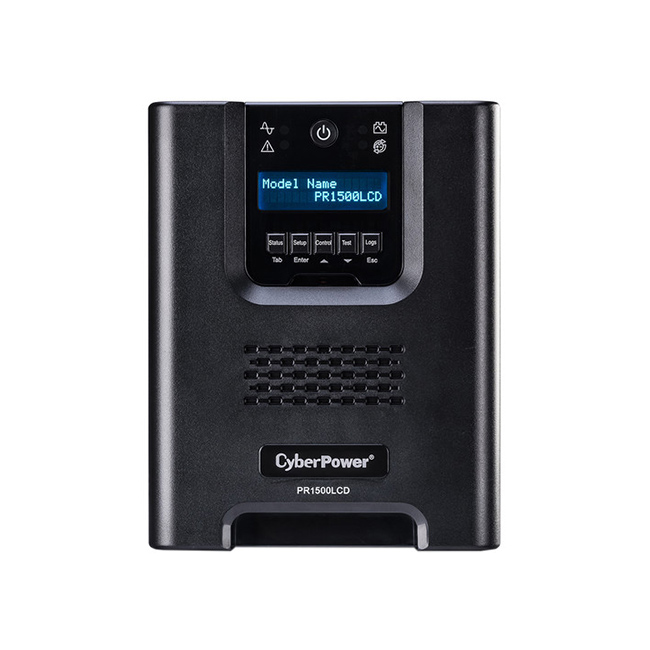

The CyberPower PR1500LCDN Mini-Tower UPS (1500VA/1050W) comes with the line interactive topology and a pre-installed SNMP card. It provides battery backup, power protection with true sine wave output, and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility.
The PR1500LCDN UPS uses AVR (Automatic Voltage Regulation) to correct minor power fluctuations without switching to the battery power, thereby extending the battery life. The AVR is essential where power fluctuations occur frequently. An included RMCARD205 provides remote UPS management and configuration using a standard web browser or network management system.
Output Power, Connectivity and Management
1500VA / 1050W sine wave UPS
120VAC input/output
Mini-tower
RMCARD205 SNMP/HTTP remote management card

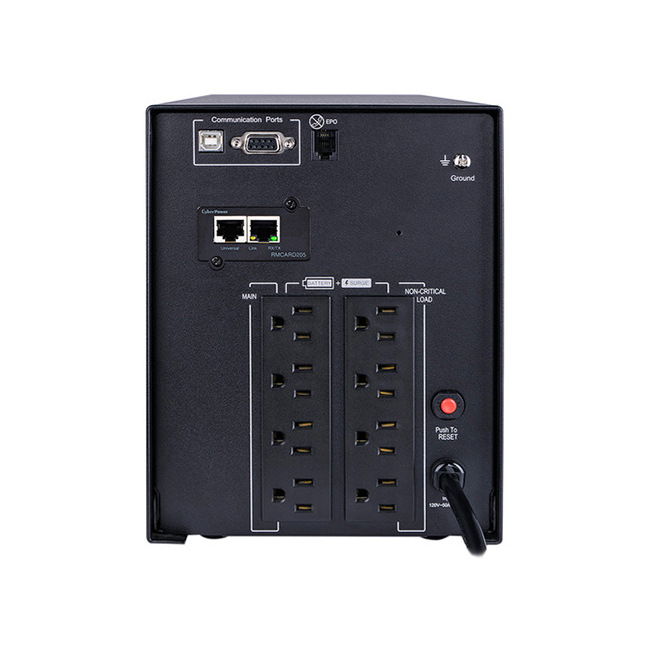

8 outlets / USB, serial, and EPO ports
Compliant with Cisco EnergyWise
ENERGY STAR compliant
Battery Backup
Supplies power long enough for the equipment to properly shut down when utility power fails
Helps prevent loss of data and minimizes the component stress caused by a hard shutdown
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to the battery
AVR (Automatic Voltage Regulation)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations
GreenPower UPS Bypass Design
Allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat build-up
Extendable LCD Control Panel
Can be removed and relocated for easy viewing using the attached 4.5′ cable
Provides easy access to view status or change settings on the UPS when it’s installed in a hard to reach area such as the bottom of a rack, under a desk, in a crowed IT closet, or on the floor
PowerPanel Business Edition Software
Provides IT professionals with tools for monitoring and managing the UPS and backup power
General
Total Outlets 8
Protected Outlets 8 (Battery and Surge)
Plug Type NEMA 5-15P
Data Line Protection RJ11, RJ45
Communications Serial via DE-9/DB-9
USB via Type-B
Emergency Power Off (EPO) Support Yes
Topology Line Interactive
Transfer Time 4 to 8 ms
Power
Surge Energy Rating 1030 Joules
Maximum Wattage 1050 W
Nominal Input Voltage 120 VAC
Input Voltage Adjustable Range 75 to 154 VAC
Input Frequency 50/60 Hz ± 3 Hz (Auto Sensing)
Nominal Output Voltage 120 VAC
Output Frequency 50/60 Hz ± 0.1 Hz
Load Capacity 1500 VA
Thermal Dissipation 113 BTU/Hour
Waveform Sine Wave
Battery
Cells 2
Battery Capacity 204 VAh
Chemistry Lead-Acid
Full-Load Runtime 8 Minutes
Half-Load Runtime 24 Minutes
Charging Time 3 to 8 Hours
User Replaceable Yes
Replacement Battery RB12170X2A
Hot-Swap Support Yes
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 95%
Storage Temperature 5 to 113°F / -15 to 45°C
Operating Altitude 10,000′ / 3000 m
Storage Altitude 50,000′ / 15,000 m
Noise Level 34.5 dBA
Certifications RoHS, as per Manufacturer
Physical
Cable Length 4.5′ / 1.4 m
Rackmount Size None
Dimensions (W x H x D) 6.7 x 8.7 x 17″ / 170.2 x 221 x 431.8 mm
Weight 54 lb / 24.5 kg
Packaging Info
Package Weight 58.5 lb
Box Dimensions (LxWxH) 22.5 x 14 x 12.5″
