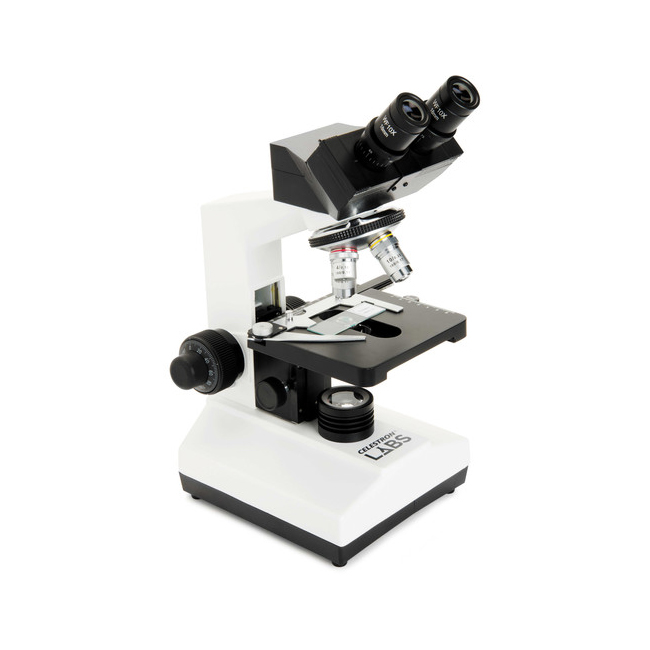

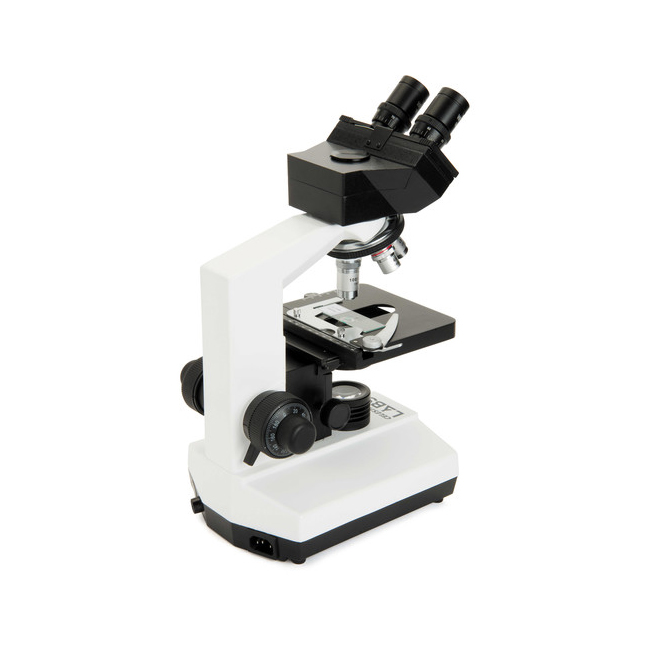

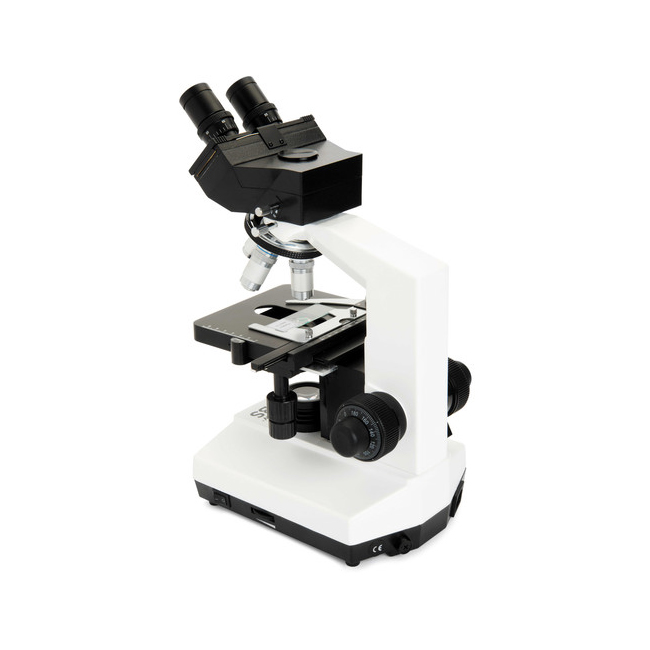

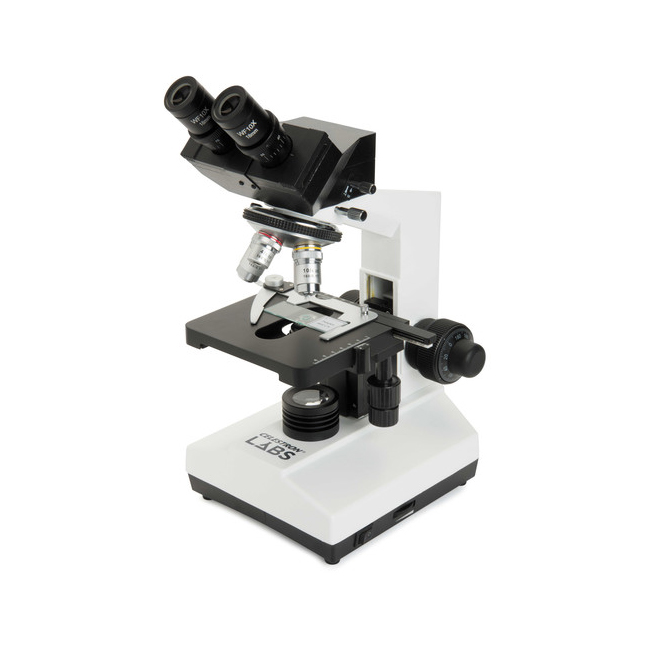

Celestron Lab’s CB2000C Compound Binocular Microscope is ideally suited for the classroom and lab environments with a comfortable binocular head design and broad magnification range. Its four-objective turret holds the 4x, 10x, 40x, 100x achromatic objectives and the instrument comes with two sets of eyepieces that produce magnifications from a practical 40x to a powerful 2000x. One of each size eyepiece features an integrated pointer. A port on the front of the head accepts the included trinocular attachment that will allow a third eyepiece to be used, or to mount imaging equipment.
The 5.5 x 5.5″ stage is articulated on the X and Y axes and a limit-stop lock prevents the objectives from striking the specimen/slides as well as providing the optimal working distance. An adjustable-intensity halogen bulb under the stage provides the necessary illumination and the manually adjustable iris and Abbe condenser ensures the perfect amount of light and beam spread to illuminate the specimen without washing it out. Use the dual coarse/fine coaxial focus knobs with the right-eye dioptric adjustment to bring all specimens into sharp, clean focus.
Optical System
Two 20x wide field eyepieces
Two 10x wide field eyepieces, one with pointer
4x, 10x, 40x, and 100x achromatic objectives
100x objective requires immersion oil for maximum resolution
Four-position click-stop turret
40x, 100x, 400x, and 1000x magnification with 10x eyepieces
80x, 200x, 800x, and 2000x magnification with 20x eyepieces
Lighting
1.25 NA Abbe condenser with three color filters
Removable blue, yellow, green filters
Lower halogen illumination, adjustable intensity
Manual mechanical iris adjustment
Focusing
Coaxial coarse and fine focus knobs
Left and right focus knobs for left and right-handed use
Sliding Interpupillary adjustment to accommodate a wide range of users
Right-eye dioptric adjustment
Limit-stop lock prevents the objectives from striking the specimen/slides

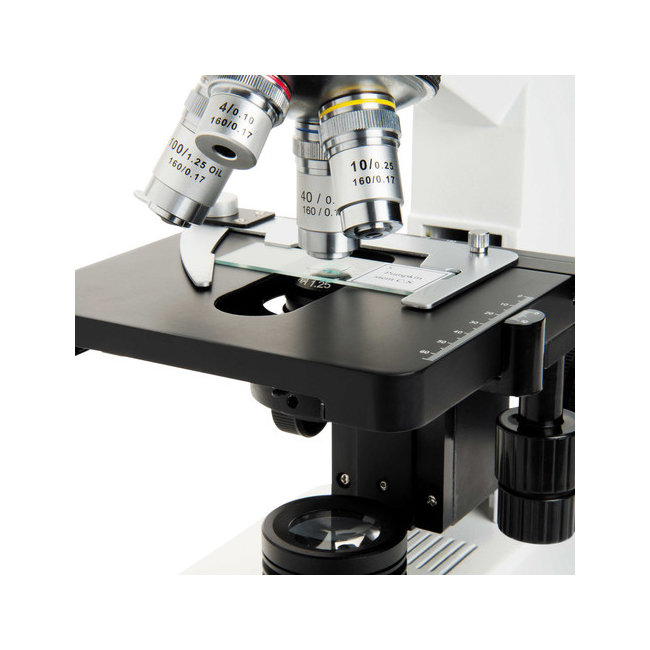

Stage
5.5 x 5.5″ mechanical square stage
Limit-stop lock prevents the objectives from striking the specimen/slides
Adjustable-width locking slide/specimen holder
Accepts 3 x 1″ (76.2 x 25.4mm) specimen slides
X-Y right-handed stage adjustments
Integrated ruler on edge

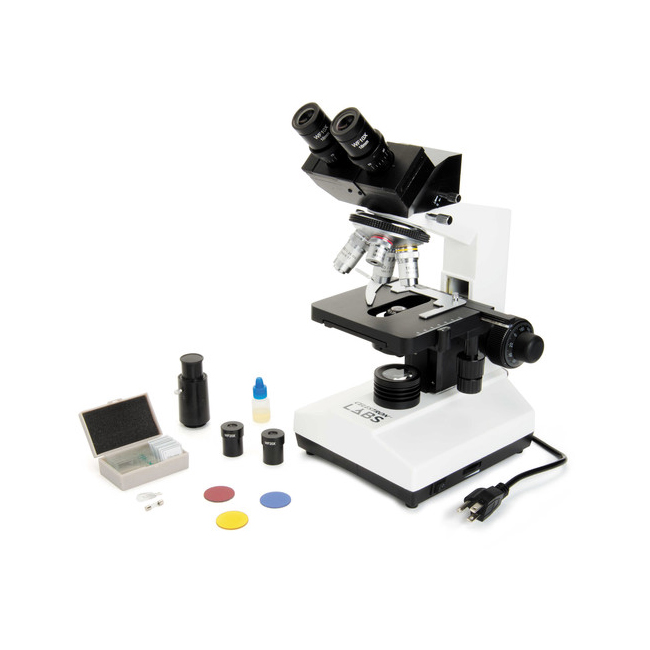

In the Box
CELESTRON LABS CB2000C Compound Binocular Microscope with 5.5 x 5.5″ Mechanical Stage
4 x Objective Lenses
2 x 10x Wide-Field Eyepieces
2 x 20x Wide-Field Eyepieces
10 x Prepared Slides
3 x Colored Filters
Immersion Oil
Power Cord
Trinocular Eyepiece Tube
Limited 2-Year Warranty
CELESTRON LABS CB2000C Specs
Head 45° Inclined Binocular
Nosepiece 4-Position Nosepiece
Imaging
Optical Magnification 10x 40x, 100x, 400x, 1000x
20x 80x, 200x, 800x, 2000x
Objective 4x, 10x, 40x, 100x
Eyepiece 10x
20x
Focusing Coarse, Fine
Illumination
Illumination Type Bottom: Halogen
Dimmer Yes
General
Power 110 VAC, 60 Hz
Dimensions L: 9.8 x W: 7.3 x H: 14.3″ / L: 24.8 x W: 18.4 x H: 36.2 cm (Microscope)
L: 5.5 x W: 5.5″ / L: 14.0 x W: 14.0 cm (Specimen Stage)
Weight 12.3 lb / 5.5 kg
Packaging Info
Package Weight 16.1 lb
Box Dimensions (LxWxH) 17.8 x 13.2 x 11.5″
