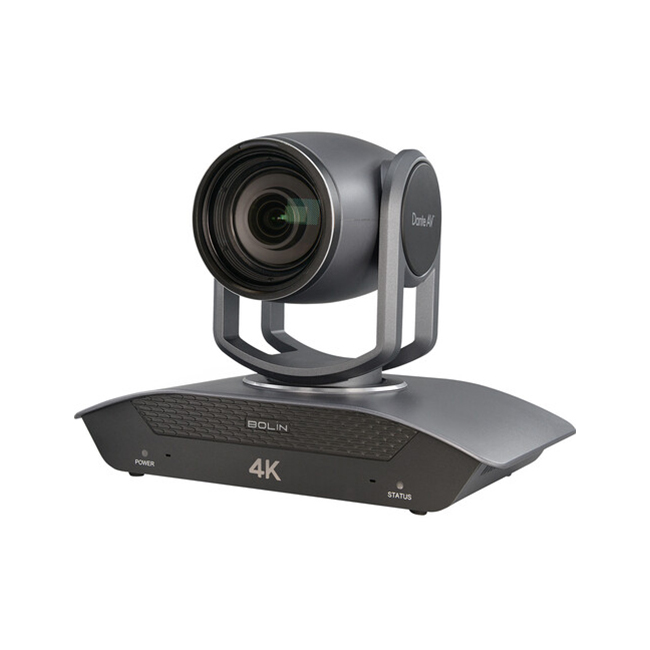

Add a camera to your conference room, education environment, house of worship, or live event production with the D412 Series Dante AV 4K60 HDMI/IP PTZ Camera with 12x Optical Zoom from Bolin. This PTZ camera is designed to capture and live stream up to UHD 4K60 video and be remotely controlled over serial, IP, and the Dante AV serial-over-IP protocol. It seamlessly fits right into an existing Dante AV ecosystem and allows you to utilize a separately available network decoder to transport, route, and decode video for network presentations.
The D412 features a 1/2.8″ Exmor R CMOS sensor to capture resolutions up to 3840 x 2160p60. The built-in zoom lens has an optical zoom range of 12x, and you can zoom in further with the 12x digital zoom. The camera offers multiple video output options including HDMI and RJ45 Gigabit Ethernet for Dante AV IP output. There are several options to control the camera remotely, including RS-232/RS-422 serial control, IP control, and the included IR remote. It supports up to 128 presets and supports VISCA-over-IP, RS-232, RS-422, RS-485, Pelco-P, Pelco-D, Onvif, and Dante AV protocols.
With 128 programmable preset positions and 6 presets on the included IR remote, you can set the camera to rapidly move between positions using the IP, RS-232, RS-422/RS-485, or IR control with separately available controllers. The camera supports external audio input via a 3.5mm stereo mic/line-level jack, and it transports AAC-LC embedded audio. The camera can be powered using PoE++ or with the included AC adapter. The camera’s body is made from lightweight, durable magnesium alloy, and it can sit on a flat surface or be mounted using a separately available ceiling or wall mount bracket.
Key Features
Multi-Screen Video Display Routing
Individually route video using familiar Dante Controller software, with no need for breakouts or matrix switches to display the camera video on any number of Dante AV-enabled screens.
Video Output
Deliver IP streaming video to Dante network and local HDMI 2.0 video output to conventional workflow in 4K60.
Multicast Mode
Point to Multipoint and Point-to-Point Distribution and supports both unicast and multicast video distribution.
Video Settings
Image parameter adjustments includes exposure, focus, iris, shutter speed, white balance, gamma, wide dynamic range, image stabilizer, flip/mirror, and more with configurable video settings.
Audio
HDMI embedded high-quality audio and Dante AV video streaming embedded audio with support for mic and line-in audio input.
100% Synchronized Video and Audio
The D412 PTZ camera integrates Dante’s sub-microsecond 100% synchronization to video and audio, a Dante single network clock keeps the camera video in sync regardless of the number of endpoints, making Lip-Sync problem a thing of the past.
Remote Control & Monitoring
Provides local serial RS-232/422 control and Dante AV Serial-over-IP and VISCA-over-IP remote site control via Dante AV decoder to precisely operate camera PTZ movements, presets, and full image parameter settings. Full IR control on remote site.
PTZ Movement
Extremely quiet and smooth operation for Pan/Tilt movements combined with enhanced adaptive, variable, and super slow speed control provides accurate and effective operation experiences. Picture Profile Preset—Image parameter setting restore with presets and quick access operation.
Ease of Installation and Use
Simply connect one network cable from camera to any 1Gb Ethernet network/PoE device to access to existing Dante Audio-over-IP system.
Always up to Date
Firmware updates, upgrade via USB and IP interface to keep Dante AV camera features and performance up to date.
Image Sensor
Image Sensor 1-Chip 1/2.8″ CMOS Sensor
Sensor Resolution Effective: 8.29 Megapixel (3840 x 2160)
Signal-to-Noise Ratio 50 dB
Minimum Illumination 0.5 Lux
Camera
Shutter Speed 1/1 to 1/10,000 sec
Max Digital Zoom 12x
Built-In ND Filter None
Flip / Mirror Support Image Flip
Lens
Optical Zoom Ratio 12x
Focal Length 3.8 to 42.9mm
Field of View Horizontal: 72.06 to 6.86°
Maximum Aperture f/1.8 to 3.68
Minimum Focus Distance Wide: 3.1″ / 8.0 cm
Telephoto: 39.4″ / 100.0 cm
Focus Control Autofocus
Manual Focus
Video Output
Output Formats HDMI, RJ45: 3840 x 2160p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080p at 23.98, 25, 29.97, 30, 50, 59.94, 60 fps
1280 x 720p at 23.98, 25, 29.97, 30, 50, 59.94, 60 fps
Embedded Audio HDMI
Control
Presets 128 via IP, RS-232, VISCA
6 via IR
Move Speed Pan: 0.05 to 100°/sec
Tilt: 0.05 to 50°/sec
Movement Range Pan: 350° (-175 to 175°)
Tilt: 120° (-30 to 90°)
Tally Light Yes
Supported Control Protocols IP
IR Pelco-D Pelco-P
VISCA
Interfaces
Video Output Connectors 1 x HDMI Type A (HDMI 2.0) Female
1 x RJ45 (Dante AV) Female
Audio I/O 1 x 1/8″ / 3.5 mm Stereo Mic/Line Level Input
Control Interface 1 x RJ45 (RS-422) Input
1 x RJ45 (IP Control, Pelco-D, Pelco-P, RS-422, VISCA) Input
Power
PoE Support PoE++ 802.3bt
Power Connectors 1 x JEITA (12 VDC)
Power Consumption Device: 37 W
Environmental
Operating Temperature 14 to 104°F / -10 to 40°C
Operating Humidity 0 to 80%
General
Tripod Mounting Thread 2 x 1/4″-20 Female
1 x 3/8″-16 Female
Material of Construction Magnesium Alloy
Sound Level NC35 (at Normal Speed)
Dimensions 10.7 x 8.1 x 6.2″ / 272 x 206.1 x 156.6 mm
Weight 6.6 lb / 3 kg
Packaging Info
Package Weight 12.495 lb
Box Dimensions (LxWxH) 13.8 x 13.1 x 9.5″
